|Automatic Grade||Semi Automatic|
|Country of Origin||India|
|Place of Origin||India|
|Payment Terms||L/C, D/P, T/T|
|Packaging Details||Export Packing|
Distillate Quality :
Ideal for general laboratory use- capable of producing pyrogen free water.

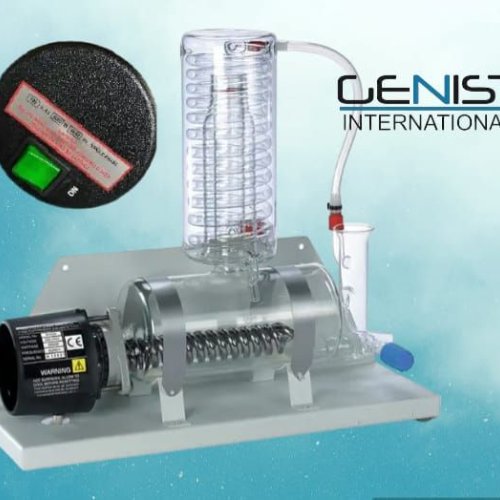

Abundant Output: The still provides, 4 liters/hr of distilled water produced through a power input of 3 KW by a chromium plated heater housed in a horizontal Glass Boiler Distilled output is cool ensured by a high efficiency condenser. Temperature of distillate 25.0°C – 40.0°C tested for ambient room temperature of 30.0° C.
Specifications / Construction :
»The stand is powder coated for long rust free Operation

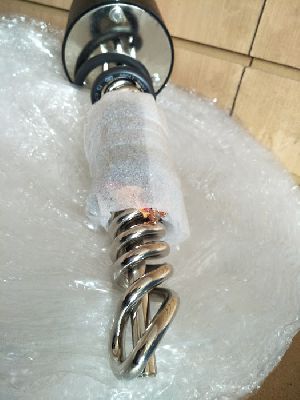

»Heater is a 3 KW Chromium plated heater housed with a thermostat, which shuts automatically in case of water supply failure.
»The Boiler & Condenser are designed for high efficiency and provided with threading for easy plumbing of condenser.
»Boiler is provided with Tension screw cork for inside cleaning of the boiler. Output: 4lit/hr Conductivity ( Using raw water) 3.0-4.0μS/cm Conductivity ( Using raw water) 1.5-2.0μS/cm pH : 5.5-6.0 Distillare quality: Pyrogen free
Min. pressure : 3 p.s.i. (0.2 x 105 NM-2)
Water Supply: Min ï¬ï¿½owrate 1 ltr/min
Power : 220/240 V, 50/60 Hz. Single phase. 3 KW Heater.
Dimension: 50 x 15 x 46cm ( WxDxH)
Weight: 6Kg Approx.
